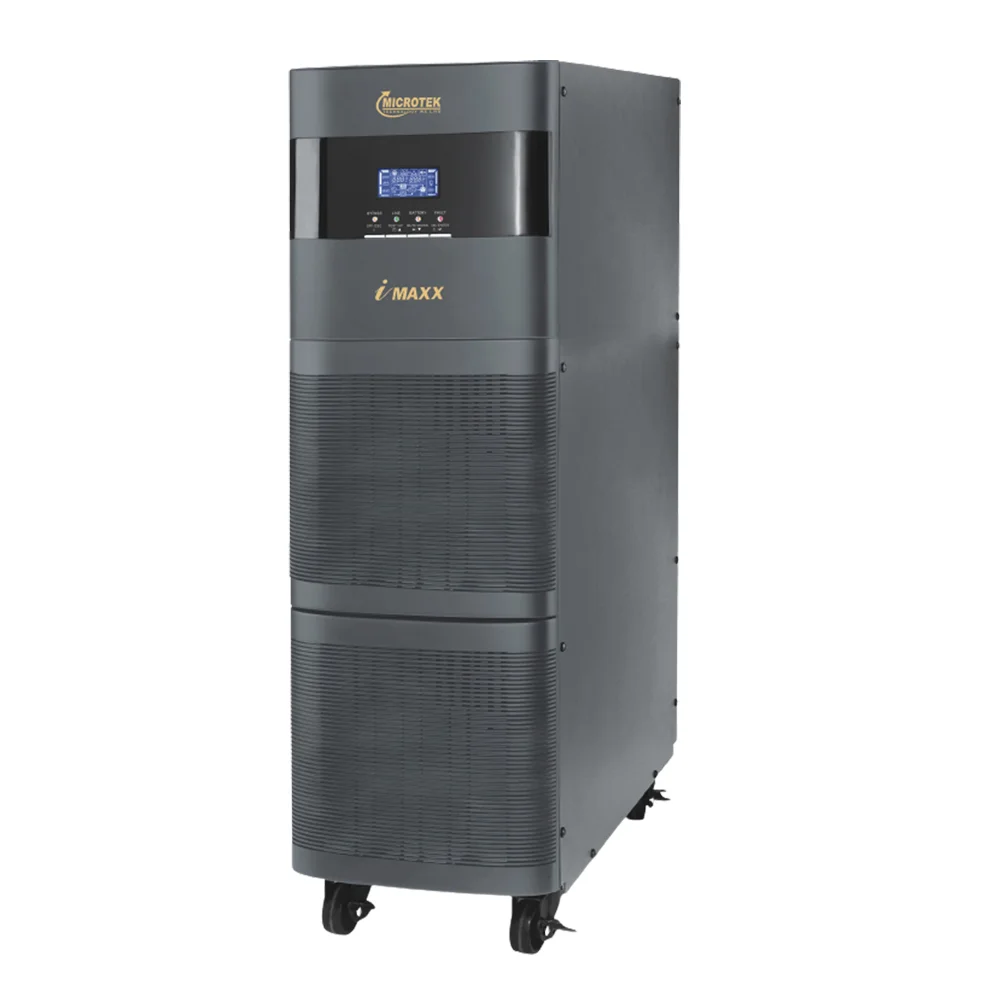

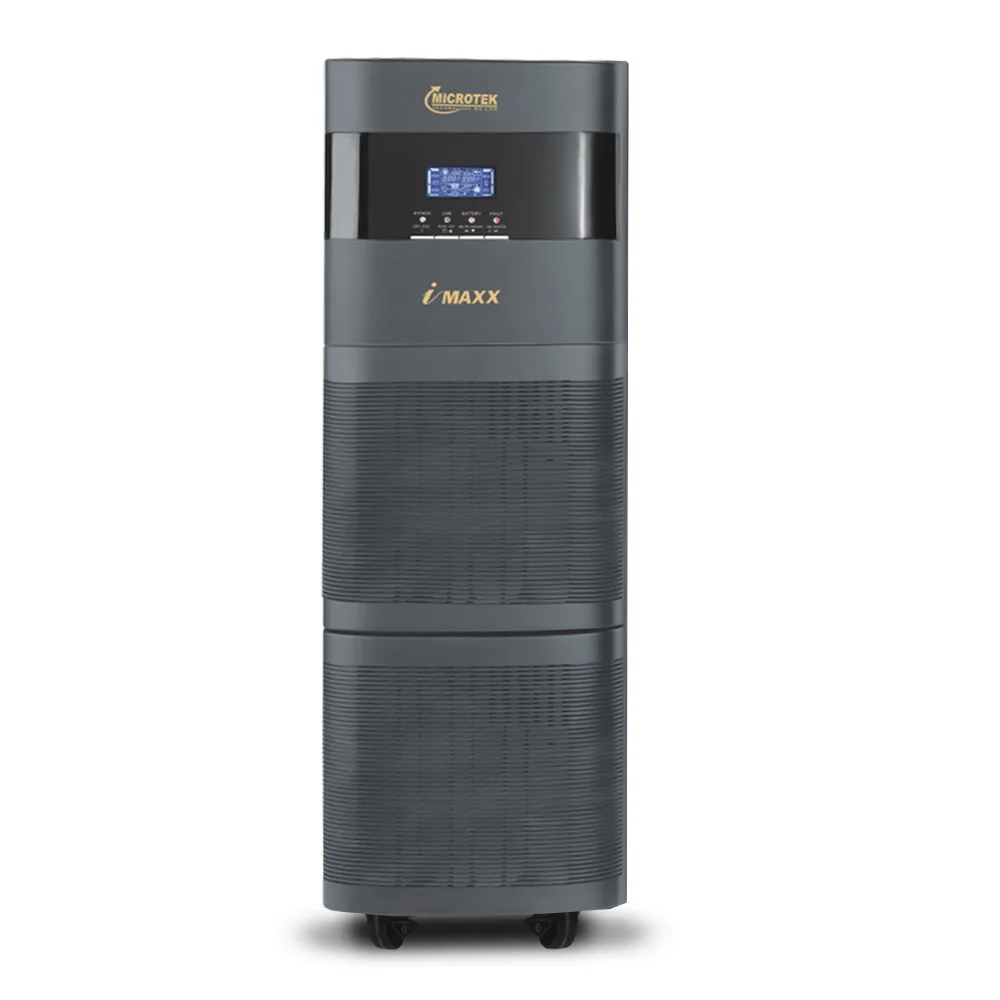

ON LINE UPS 7.5KVA, 1ph: 1ph, 192V iMAXX SERIES

Microtek offers Wide Range of Online UPS from 1KVA to 40KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.

• DSP Technology with IGBT Based Inverter.
• Inbuilt OVCD (Over Voltage Cut-Off Device) With Surge Protection.
• Smart LCD Display for Real-Time Information.
• EMI/RFI Noise Filter.
• CVCF (Constant Voltage Constant Frequency) Operational Without Battery.
• Conformal Coated PCB Assemblies to withstand harsh environment.
• External Charger Capacity Expansion to 4amps. (Optional) on demand.
• Hot stand-by, Cold Start & RS-232/ USB Port Feature Available.
• Built-in Maintenance Bypass & Stick Bypass Switch.
• Alarm for Mute Mode and SNMP Card (Optional).
• Over Temperature Indication & Protection.
• Configurable Output Voltage Settings.
• Output Frequency Fixed at 50Hz or can be synchronized with input Frequency.
• Generator Compatible. Generator Capacity required for stand-by source should be 2.5 times of the UPS Capacity.
