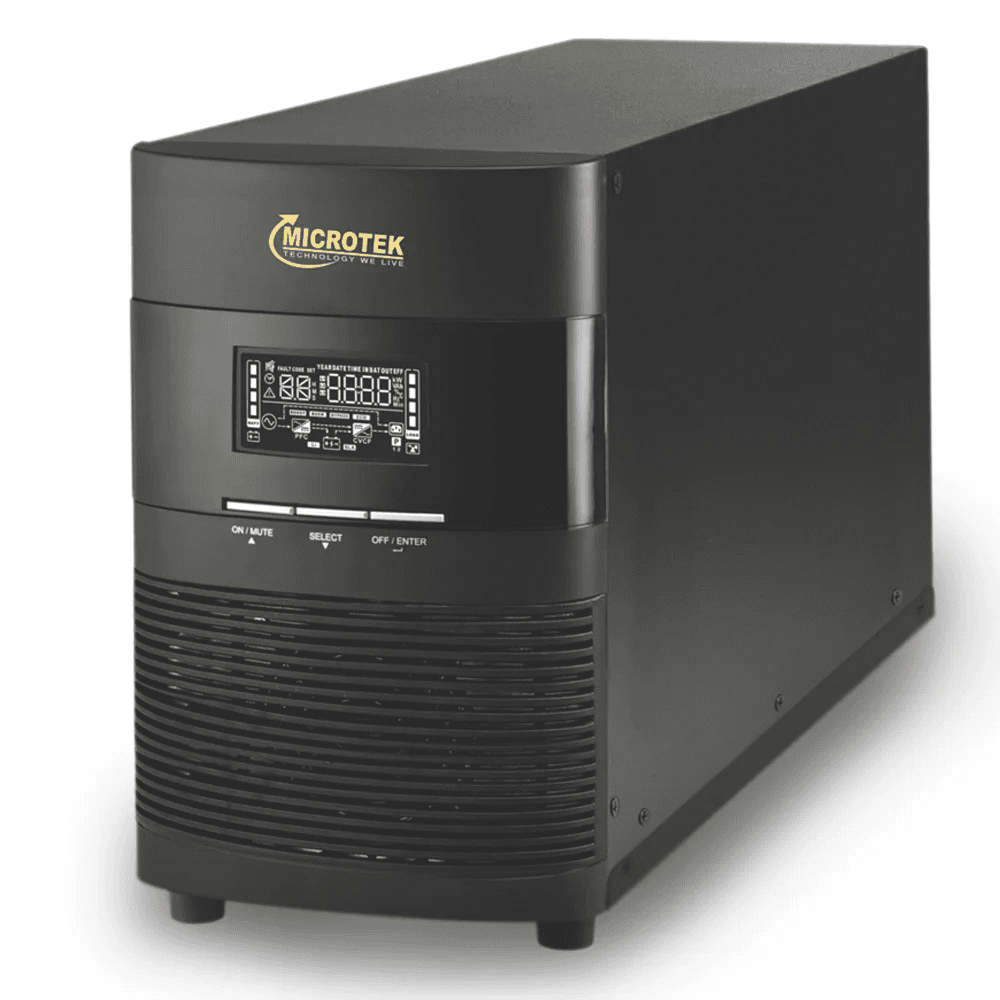

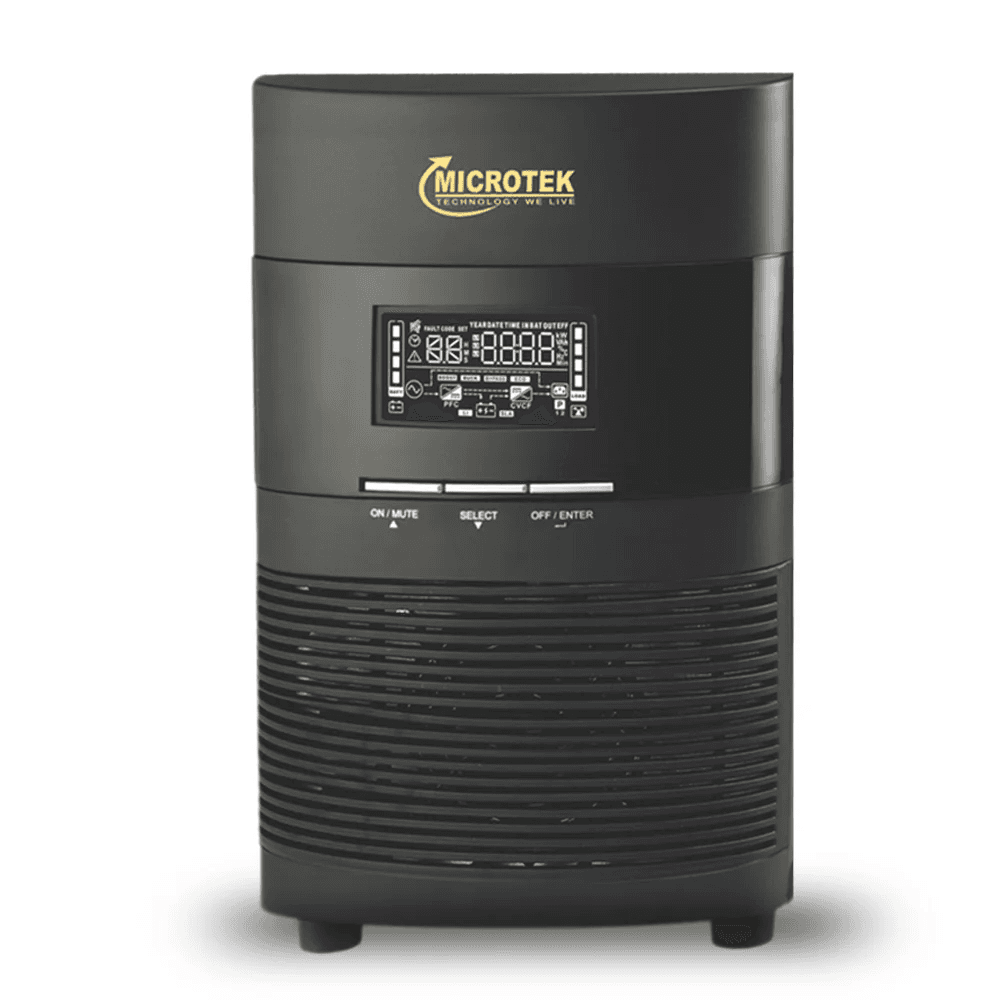

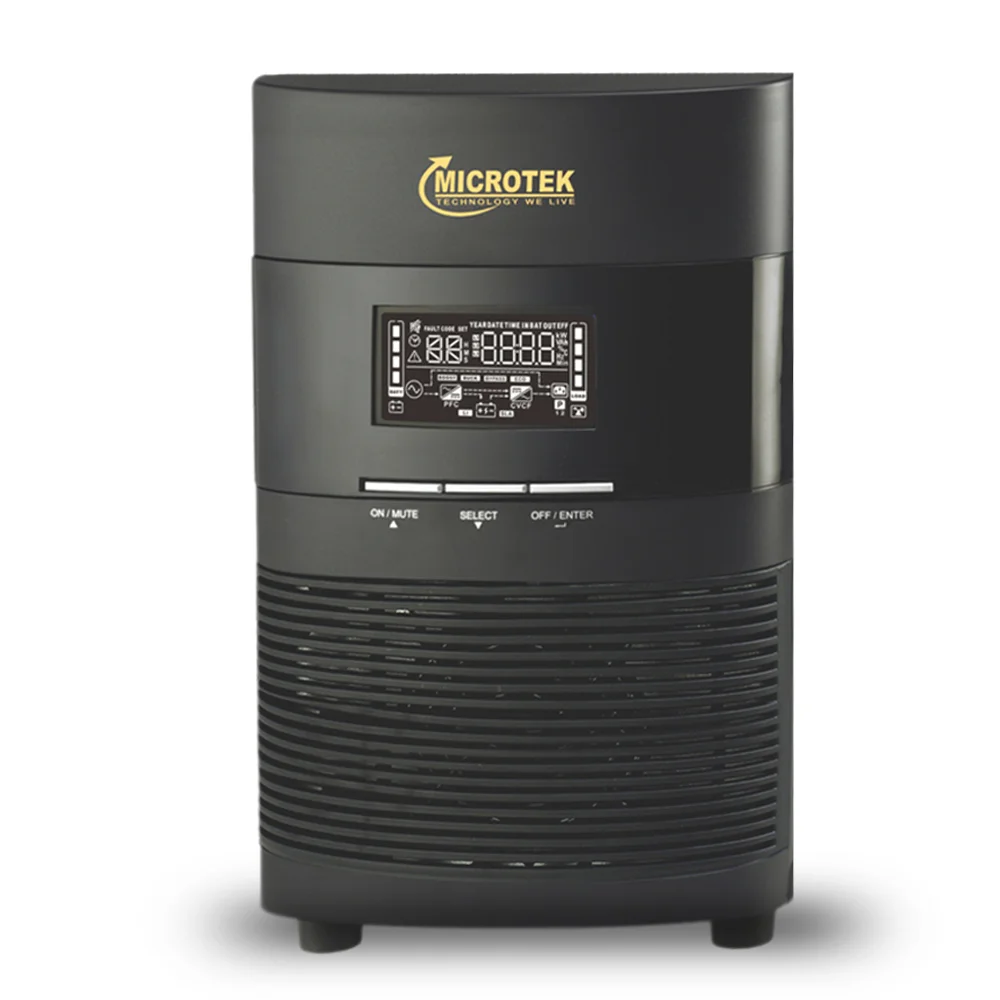

ON LINE UPS MAX LiFe 1KVA/48V + MPPT 20A
- Weight6.4kg
- Output VoltageSame as Input
- Dimensions (L*W*H)397x145x220
SALIENT FEATURES:
- True Double-Conversion.Microprocessor Control Optimizes Reliability.
- Comprehensive Display allows easy monitoring and access of UPS status.
- Advanced Battery Management (ABM).
- High Power Factor Charger upto 1000W Capacity with very Low Ripple Current when Charging Battery.
- Lithium-ion Battery Compatiable.
Microtek offers Wide Range of Online UPS from 1KVA to 40KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.
Microtek offers Wide Range of Online UPS from 1KVA to 40KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.
- True Double-Conversion.Microprocessor Control Optimizes Reliability.
- Comprehensive Display allows easy monitoring and access of UPS status.
- Advanced Battery Management (ABM).
- High Power Factor Charger upto 1000W Capacity with very Low Ripple Current when Charging Battery.
- Lithium-ion Battery Compatiable.
- Low input THDi (5%) to reduce Power system pollution.
- Output power Factor is 0.9.
| MODEL | MAX LiFE ONLINE UPS 1KVA/48V |
| INPUT | |
| CAPACITY | 1000VA/900W |
| LOW LINE TRANSFER VOLTAGE RANGE | 160VAC/140VAC/120VAC/110VAC+3% Based on Load %ge 100%-80% / 80%-70% / 70%-60% / 60%-0% |
| LOW LINE COMEBACK VOLTAGE RANGE | 175VAC/155VAC/135VAC/125VAC+3% |
| HIGH LINE TRANSFER VOLTAGE RANGE | 300VAC+3% |
| HIGH LINE COMEBACK VOLTAGE RANGE | 290VAC+3% |
| PHASE | Single Phase With Ground |
| FREQUENCY RANGE | 40Hz - 70Hz |
| POWER FACTOR | >0.99 |
| INPUT CURRENT HARMONIC DISTORTION THD(i) | >5%@205-245VAC |
| OUTPUT | |
| NOMINAL VOLTAGE | 200*/208*/220/230/240 VAC |
| AC VOLTAGE REGULATION | +1% |
| FREQUENCY RANGE | Synchronized Range: 50Hz System: 47-53Hz / 60Hz System: 57-63Hz Battery Mode: 50Hz+0.1^ or 60 Hz+0.1% |
| CURRENT CREST RATIO | 3:1 (Max) |
| HARMONIC DISTORTION | <1% THD (Linear Load) :<4% THD (Non-Linear Load) |
| AC/DC TRANSFER TIME | ZERO |
| INVERTER to BYPASS TRANSFER TIME | 4ms (Typical) |
| ECO to BATTERY MODE TRANSFER TIME | 8ms (Typical), 10ms (Max.) |
| WAVE FORM (BATTERY MODE) | Pure Sine Wave |
| ONLINE MODE OVERLOAD CAPACITY | 100%+4sec) @ambient temp. <40°C or 2.5min(+4sec) @ambient temp. >=40°C 130% +1Sec). 140%+0.5sec). |
| INVERTER (BATTERY) MODE OVERLOAD CAPACITY | 100%+4sec) @ambient temp.<40°C or 1min(+4sec) @ambient temp.>=40°C 130% +1Sec).140%+0.5sec). |
| FULL CHARGED BATTERY EFFICIENCY | ECO MODE : <96% / AC MODE: <89% |
| FULL LOAD EFFICIENCY | BATTERY MODE: <88% |
| BATTERY | |
| NOMINAL VOLTAGE APFC CHARGER | 48V |
| CHARGING CURRENT (MAX.) APFC CHARGER | 20A Max. Current Setting Through LCD Panel (Adjustable: 2/4/8/10/12/14/16/20A) |
| RIPPLE CURRENT (%) APFC CHARGER | <8% |
| CHARGING VOLTAGE APFC CHARGER | 53.3VDC+1% (Adjustable From LCD) |
| CHARGING PROFILE APFC CHARGER | CC-CV |
| INDICATION | |
| STATUS | Load Leval, Battery Leval, AC Mode, Battery Mode, Bypass Mode and Fault Indicator Via LCD |
| ALARM | |
| BATTERY MODE : Sounding every 5sec | LOW BATTERY: Sounding every 2 Sec. OVERLOAD: sounding every Sec. FAULT: Continously |
| PHYSICAL | |
| DIMENTIONS PRODUCT (LxWxH) | 397x145x220 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 6.4 Kgs. |
| ENVIRONMENT | |
| OPERATING HUMIDITY / TEMP. | 20-95% RH & Non-Condersing / 0.45°C |
| NOISE LEVEL | Less Than 53dBa @ 1 Meter with Fan Speed Control |
| MANAGEMENT | |
| SMART RS-232 OR USB | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10 Linux & Mac |
| OPTIONAL SNMP | Power Management From SNMP Manager and Web Browser |
