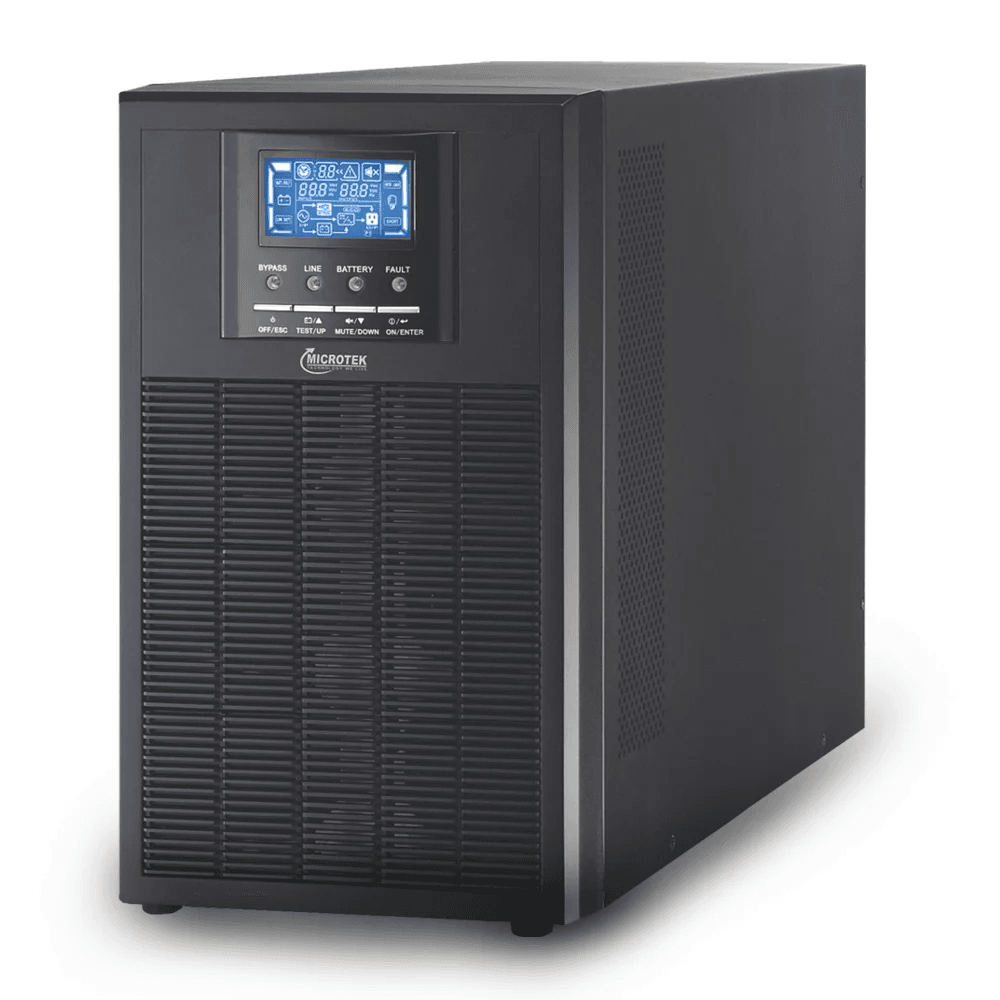

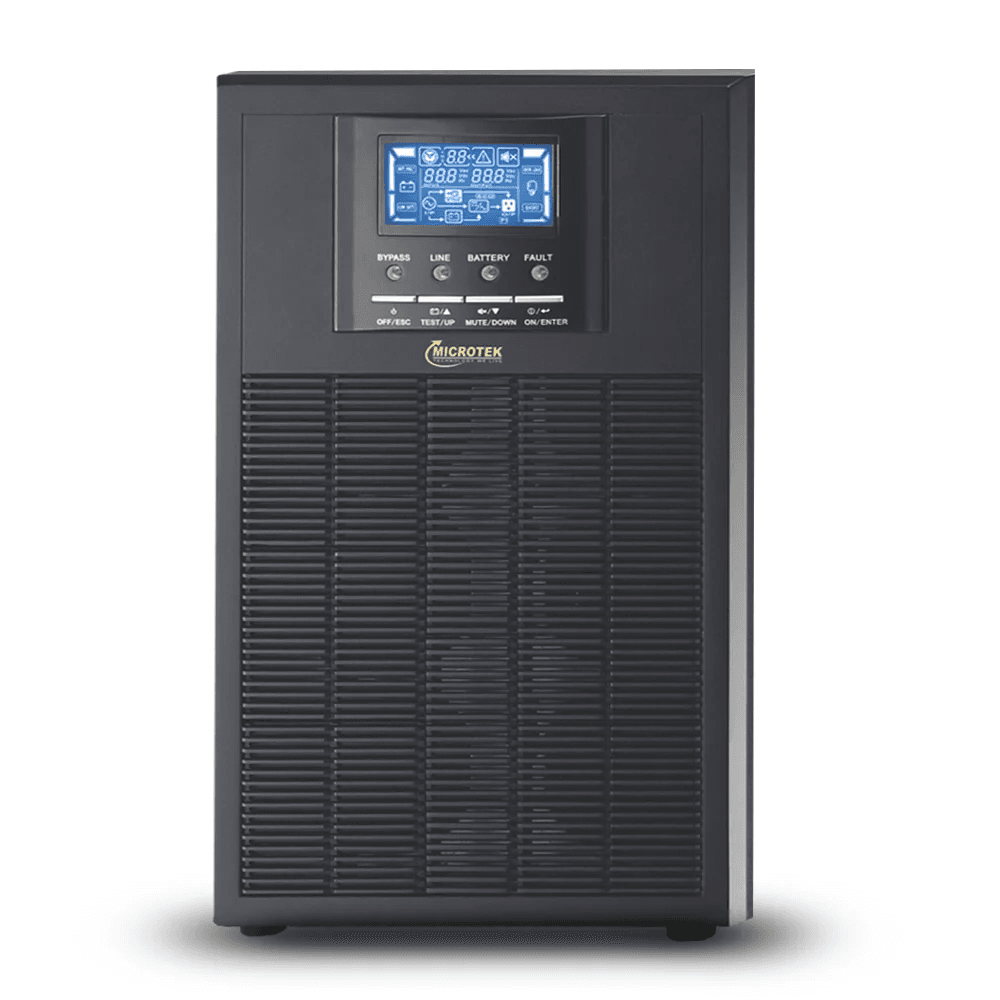

ONLINE UPS MAX LiFe 3KVA 1PH:1PH 48V
- Weight15.5kg
- Output VoltageSame as Input
- Dimensions (L*W*H)465x190x319
SALIENT FEATURES:
- True Double-Conversion.
- Sine-wave Output. Unity Power Factor.
- Configurable Charging Current Via LCD Settings.
- Cold Start Capability.
- Very Powerful AC Charger at 60A.
Microtek offers Wide Range of Online UPS from 1KVA to 30KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.
Pure Sinewave Output Ratings starting from 6500i/96V to 11000i/180V Micro Processor based PWM Technology using Hi-Grade IGBTs Advance Battery Management (ABM) for Longer Battery Life and Quick Charging Static UPS with LCD Display Best Suited for most High Capacity Sophisticated Applications. Generator Compatible. In-built TDR (Time Delay Relay).
Microtek offers Wide Range of Online UPS from 1KVA to 30KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.
Pure Sinewave Output Ratings starting from 6500i/96V to 11000i/180V Micro Processor based PWM Technology using Hi-Grade IGBTs Advance Battery Management (ABM) for Longer Battery Life and Quick Charging Static UPS with LCD Display Best Suited for most High Capacity Sophisticated Applications. Generator Compatible. In-built TDR (Time Delay Relay).
- True Double-Conversion.
- Sine-wave Output.Unity Power Factor.
- Configurable Charging Current Via LCD Settings.
- ColdStart Capability.
- Very Powerful AC Charger at 60A.
- Optional Parallel Operation up to 9 units for Single Phase and Three Phase Applications.
- Common 48 DC Battery pack for teh Parallel System.
- Full Bridge Inverter Design to Support Half Wave Loadand Unbalanced Load.
| MODEL | MAX LiFE ONLINE UPS 3KVA/48V |
| INPUT | |
| CAPACITY | 3000VA/3000W |
| VOLTAGE | 220/230/240 VAC |
| VOLTAGE RANGE | 110-280 VAC@50%Load ; 176-280 VAC@100% Load |
| PHASE | SINGLE PHASE WITH GROUND |
| FREQUENCY RANGE | 46Hz - 54Hz or 56Hz - 64Hz |
| POWER FACTOR | >0.98 @ NOMINAL VOLTAGE (100% LOAD) |
| INPUT CURRENT HARMONIC DISTORTION THD(i) | >8% |
| OUTPUT | |
| OUTPUT NOMINAL VOLTAGE | 220/230/240 VAC |
| AC VOLTAGE REGULATION | +1% (BATTERY MODE) |
| FREQUENCY RANGE | Synchronized Range: 50Hz System: 47-53Hz / 60Hz System: 57-63Hz Battery Mode: 50Hz+0.1^ or 60 Hz+0.1% |
| CURRENT CREST RATIO | 3:1 (Max) |
| HARMONIC DISTORTION | < 3% THD (Linear Load) :< 5% THD (Non-Linear Load) |
| AC/DC TRANSFER TIME | ZERO |
| INVERTER to BYPASS TRANSFER TIME | 4ms (Typical) |
| WAVE FORM | Pure Sine Wave on AC Input Power Mode & 54 VDC on Battery Mode |
| ON FULL CHARGED BATTERY EFFICIENCY | LINE MODE : 95% / ECO MODE: 99.5% / BATTERY MODE: 92.0% |
| BATTERY | |
| BATTERY VOLTAGE | 48V |
| BATTERY TYPE | Lithium-ion or Lead Acid Battery* |
| FLOATING CHARGE VOLTAGE | 52 VDC (Configurable up to 58 VDC From LCD) |
| OVERCHARGE PROTECTION | 60 VDC |
| CHARGING CURRENT (MAX.) | 60 A (Configurable 10A / 20A / 30A / 40A / 50A / 60A From LCD) |
| INDICATION | |
| LCD PANEL | Load Leval, Battery Leval, AC Mode, Battery Mode, Bypass Mode and Fault Indicator Via LCD |
| ALARM | |
| BATTERY MODE : Sounding every 5sec | LOW BATTERY: Sounding every 2 Sec. OVERLOAD: sounding every Sec. FAULT: Continously |
| PHYSICAL | |
| DIMENTIONS PRODUCT (LxWxH) | 465x190x318 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 15.5 Kgs. |
| ENVIRONMENT | |
| OPERATING HUMIDITY / TEMP. | 0-95% RH & Non-Condersing / 0.50°C |
| STORAGE TEMPERATURE | -15°C to 60°C |
| MANAGEMENT | |
| COMMUNICATION INTERFACE | RS-232 and USB. SNMP Card / MODBUS Card (Optional) |
