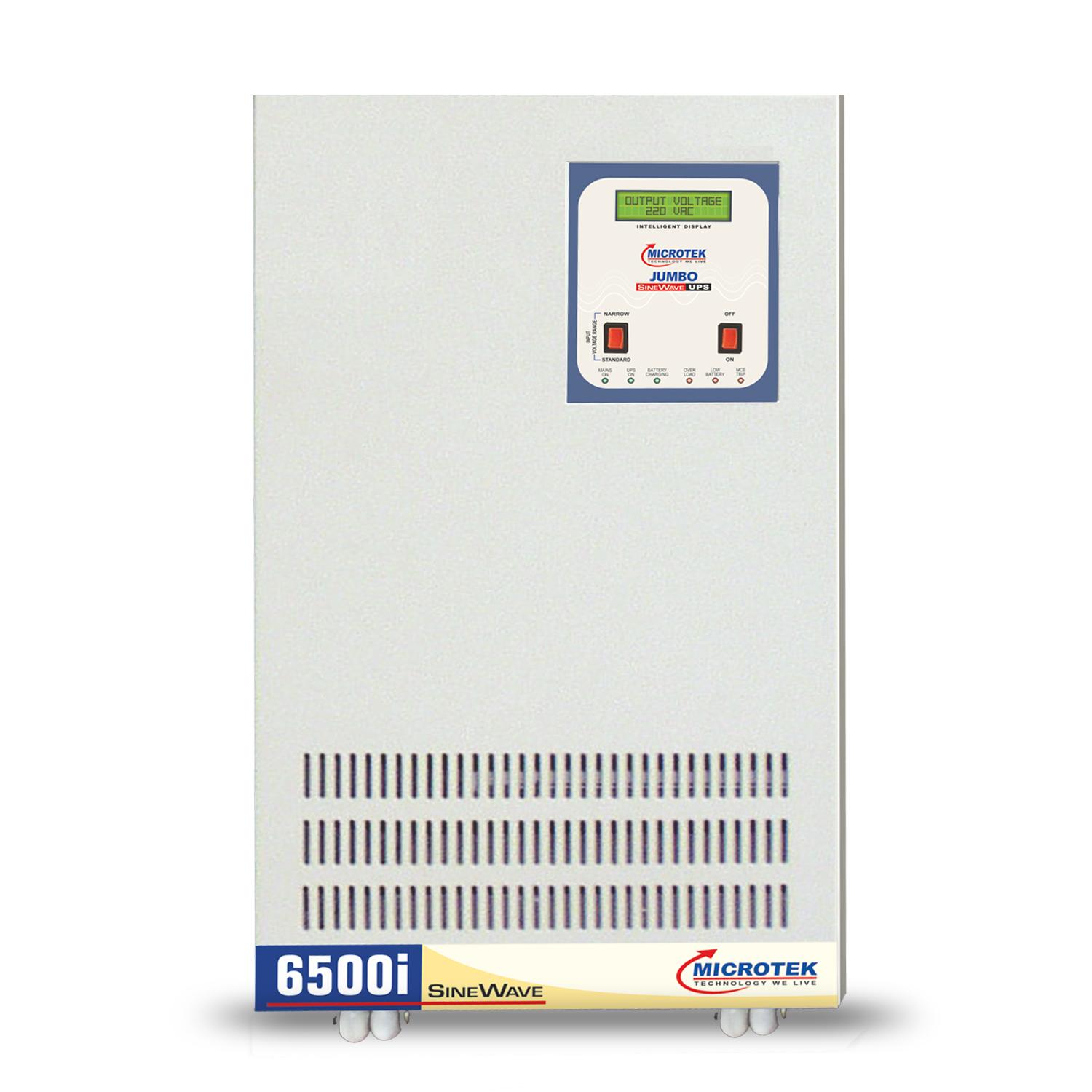

Hi-GRADE JUMBO UPS JM SW 6500i/96V
- Weight92.3kg
- Output Voltage4400 Watts
- Dimensions (L*W*H)600x345x665
SALIENT FEATURES:
- Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging
- Micro Processor based PWM Technology using Hi-Grade IGBT’s
- LED & LCD Display Indications.
- Best Suited for most High Capacity Sophisticated Applications.
- Generator Compatible.
- In-built Time Delay Relay (TDR).
Microtek UPS JM SW 6500i is Hi-Grade IGBT Based Jumbo UPS Model with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.
| Rated Capacity | 5.5 KVA / 96 V |
| Output Power | 4400 Watts |
| Battery | 8 Battery System (96 VDC) |
| Waveform | Pure Sinewave |
| Warranty | 2 Years |
Microtek UPS JM SW 6500i is Hi-Grade IGBT Based Jumbo UPS Model with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.
| Rated Capacity | 5.5 KVA / 96 V |
| Output Power | 4400 Watts |
| Battery | 8 Battery System (96 VDC) |
| Waveform | Pure Sinewave |
| Warranty | 2 Years |
- Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging
- Micro Processor based PWM Technology using Hi-Grade IGBT’s
- LED & LCD Display Indications.
- Best Suited for most High Capacity Sophisticated Applications.
- Generator Compatible.
- In-built Time Delay Relay (TDR).
DISPLAY INDICATION
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- LOW BATTERY
- MCB TRIP
| INPUT | |
| INPUT VOLTAGE (Standard range) | 100V ~ 280V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 265V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 220V+ 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | Pure Sinewave |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15 msec |
| TECHNOLOGY | |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 105%~125%(4 Times Auto Reset) / 300% |
| EFFICIENCY (BATTERY MODE) | >80% |
| TOTAL HARMONIC DISTORTION (Resistive Load) | Less than 3% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 84 ~ 114 V ± 1 Volt |
| MAXIMUM CHARGING CURRENT | 16 Amps(Settable ± 3 Amps) |
| SEPARATE OUTPUT WITH TDR | 1 minute TDR |
| OPERATING TEMPRATURE | 0 to 45 Degree Celsius |
