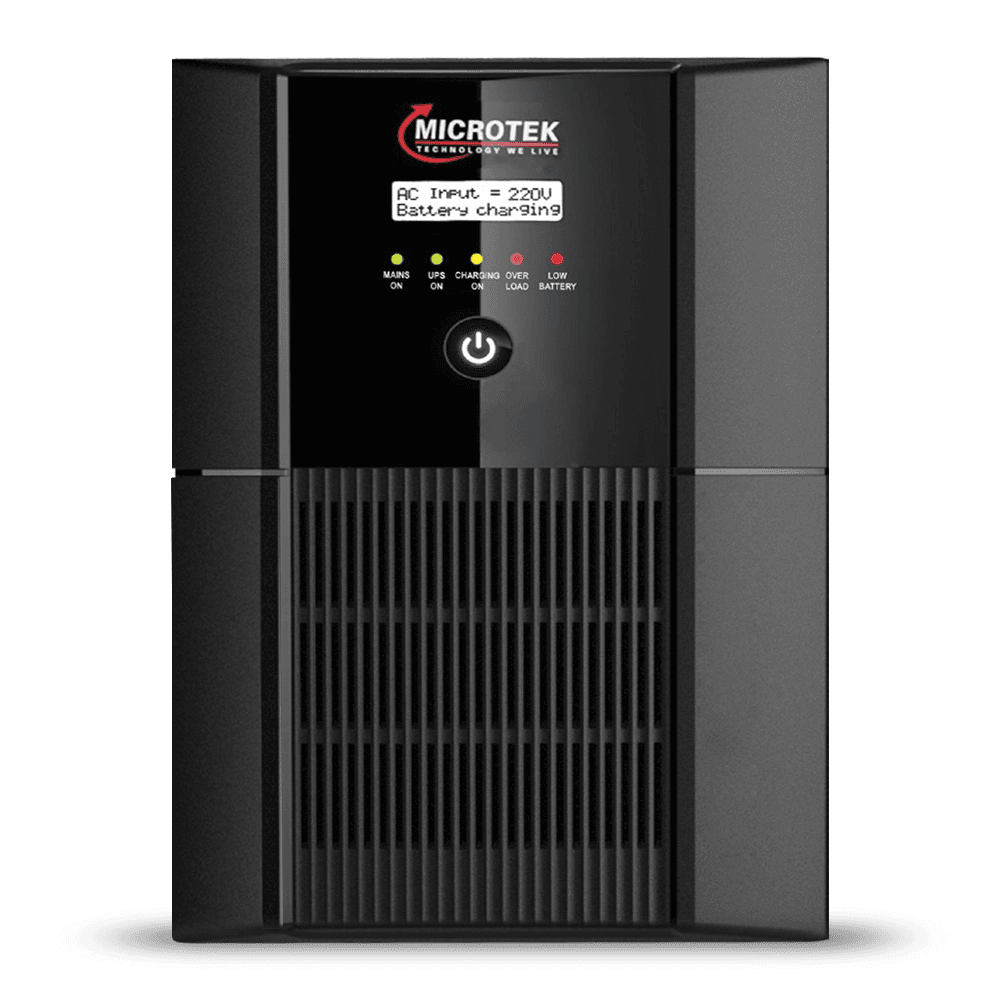

JUMBO HOME UPS Model - JM SW 3750+/36V (Working Power 3.2KVA/2560W)
- Weight27.19kg
- Output VoltageSame as Input
- Dimensions (L*W*H)514x339x460
SALIENT FEATURES:
- DSP/High-end micro controller based PWM technology using MOSFET: DSP/High-end micro controller used where the internal digital frequency control is at a speed of as high as 40 MIPS (millions instructions per Second).
- ACEC (Analog Compare Error Correction) technology based PWM for the generation of Pure Sine wave: Using ACEC technology the PWM is corrected.
- Boost Based PWM Controlled Intelligent Multistage Battery Management Charging Technology. The input power factor maintains 0.85 which reduce the electricity bills.
- Protections: Wiring Fault, Overload, Short Circuit, Battery low, Reverse Phase, Reverse Battery Protection.
Microtek UPS JM SW 3750+/36V Working Power 3.2KVA is DSC Based Intelli Pure Sinewave Jumbo UPS Model for Small Offices and Home Applications which ensures Noiseless, Safe and Efficient Performance.
It is DSC based Intelligent Control Design using latest state-of-the art Technology. It also comes with Additional Features like Battery Selection Mode Switch for selecting Tubular, Standard & Local Battery for Quick Charging and Longer Battery Life with Enhanced Backup.
Microtek UPS JM SW 3750+/36V Working Power 3.2KVA is DSC Based Intelli Pure Sinewave Jumbo UPS Model for Small Offices and Home Applications which ensures Noiseless, Safe and Efficient Performance.
It is DSC based Intelligent Control Design using latest state-of-the art Technology. It also comes with Additional Features like Battery Selection Mode Switch for selecting Tubular, Standard & Local Battery for Quick Charging and Longer Battery Life with Enhanced Backup.
- DSP/High-end micro controller based PWM technology using MOSFET: DSP/High-end micro controller used where the internal digital frequency control is at a speed of as high as 40 MIPS (millions instructions per Second).
- ACEC (Analog Compare Error Correction) technology based PWM for the generation of Pure Sine wave: Using ACEC technology the PWM is corrected.
- Boost Based PWM Controlled Intelligent Multistage Battery Management Charging Technology. The input power factor maintains 0.85 which reduce the electricity bills.
- Protections: Wiring Fault, Overload, Short Circuit, Battery low, Reverse Phase, Reverse Battery Protection.
- ASC (Assessing System Configuration) software technique is being incorporated. The software verifies all the critical system parameters before the system starts, & keep on assessing the system parameters while the system is running.
- Performance: Delivers unmatched noise free performance.
- UPS Mode: Very useful with computer type of application, Music studio or medical etc.
- Replicates Mains: Ensure same power quality as from mains with a crest factor of as high 3.7
- Display: LCD/LED Indication for status & Fault, Load & Battery Indication.
- PLPO: Peak load Peak Output ensures high load handling capacity.
- Generator Compatible.
MODEL UPS | JM SW 3750+/36V |
---|---|
Capacity / Rating | 3.2KVA / 2560W |
Standard Input Voltage | 100V~280V |
Narrow Input Voltage | 180V~260V |
Output Voltage on Main Mode | Same as Input |
Output Voltage on UPS mode | 220V+10% |
Output Frequency on UPS Mode | 50Hz+0.5Hz |
Switching form mains to UPS and UPS to mains | Automatic |
Output wavefrom on mains mode | Same as input |
Output wavefrom on backup mode | Pure Sinewave |
Battery charging current | Max Charge Current 20A+3A |
Battery Charger | Boost Based PWM Control Multi-Stage IBM technology |
Efficinecy | >80% |
Input Brown Out Voltage | 100V+10V |
UPS Overload | 108% of the Rated Capacity |
Technology | DSP Based Smart Control Design |
Auto Reset Feature | Yes |
Environmental Parameters |
Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dB Relative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
Mains to Bypass | Rotary/Rocker Bypass Switch |
Display | LCD/LED Display Indicator |
