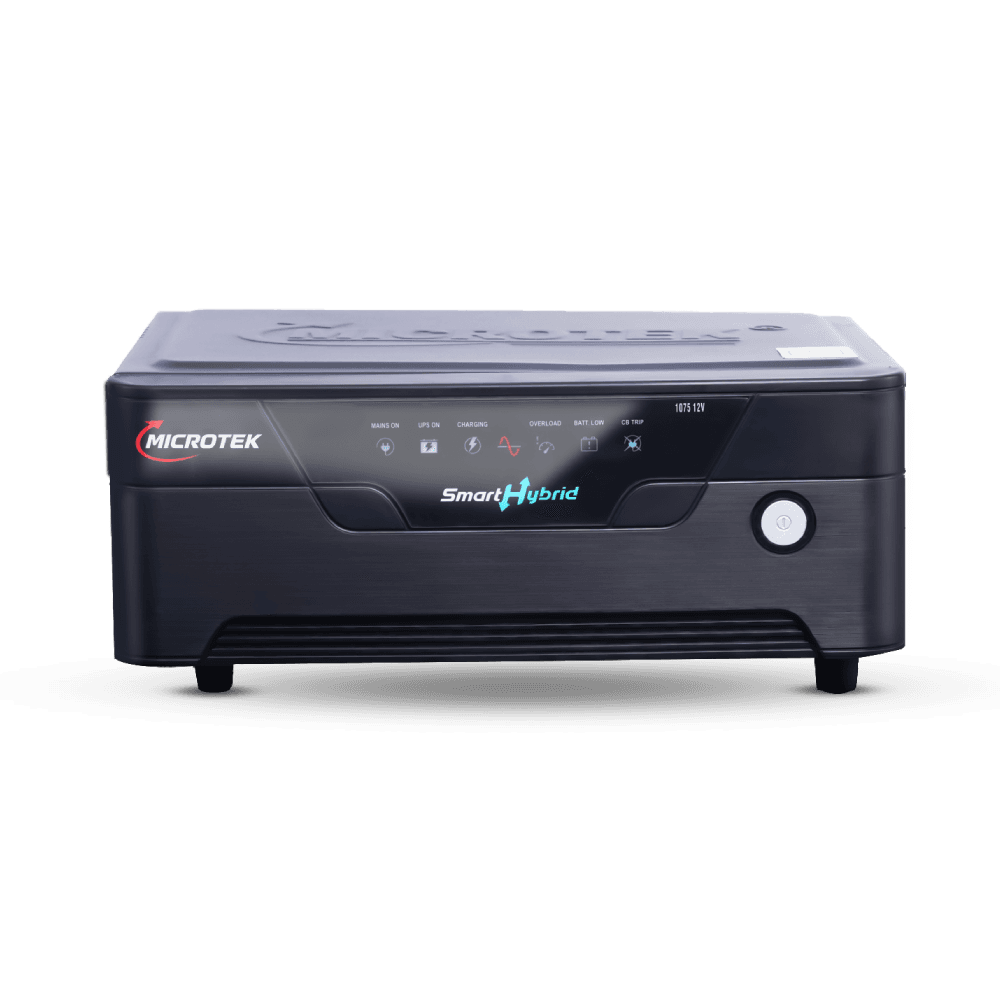

Smart Hybrid Digital & Sinewave Technologies UPS Model 875 (12V)
- Weight8.05kg
- Output VoltageSame as INPUT
- Dimensions (L*W*H)34.4x39x20.7
SALIENT FEATURES:
Smart Hybrid Inverter/UPS Series is a perfect combination of digital & Sinewave Technologies that give you best of both the worlds - Noiseless performance & more load handlings capacity.
- Hybrid Technology for Noiseless and Better Performance with Longer Backups & Battery Life.
- Battery Charging Current Selection Switch with Standard (10 Amps) & Fast Charging (14 Amps) Mode.
- IBGM Technology – Increases Battery Life and Performance by maintaining correct Battery Gravity.
Microtek Smart Hybrid Digital & Sinewave Technologies UPS Model 875 (12V), which is a Perfect Combination of Digital & Sinewave technologies which ensures Noiseless Performance, Quick Charging, More Load, Longer Battery Life and Longer Backups. It is a Premium Product that comes with Multiple Features such as In-Built Bypass Switch and IBGM (Intelli Battery Gravity Management) Technology. It has Battery type Selection Switch for Tubular and Flat Plate Battery type and also Voltage Range Selection Switch.
| Rated Capacity | 725 VA / 12V |
| Output Power | 580 Watts |
| Battery | 1 Battery System (12 VDC) |
| Waveform | Sinewave |
| Warranty | 2 Years |
Microtek Smart Hybrid Digital & Sinewave Technologies UPS Model 875 (12V), which is a Perfect Combination of Digital & Sinewave technologies which ensures Noiseless Performance, Quick Charging, More Load, Longer Battery Life and Longer Backups. It is a Premium Product that comes with Multiple Features such as In-Built Bypass Switch and IBGM (Intelli Battery Gravity Management) Technology. It has Battery type Selection Switch for Tubular and Flat Plate Battery type and also Voltage Range Selection Switch.
| Rated Capacity | 725 VA / 12V |
| Output Power | 580 Watts |
| Battery | 1 Battery System (12 VDC) |
| Waveform | Sinewave |
| Warranty | 2 Years |
- Hybrid Technology for Noiseless and Better Performance with Longer Backups & Battery Life.
- Battery Charging Current Selection Switch with Standard (10 Amps) & Fast Charging (14 Amps) Mode.
- IBGM Technology – Increases Battery Life and Performance by maintaining correct Battery Gravity.
- PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging.
- IN-Build Bypass Switch - Enables to isolate the UPS From Mains, whenever Needed.
- High & Standard Charging Option - For Quick Battery Charging.
- Unique Ultra Sonic Switching- For Noiseless Performance.
- Compatiable With all Battery Type - Tubular, Local & Flate Plate.
DISPLAY
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- BATTERY LOW
- FAULT INDICATION
| MODEL | SMART HYBRID 875 (12V) DG/SW |
|---|---|
| INPUT | |
| INPUT VOLTAGE (Standard range) | 100V ~ 300V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | Pure Sinewave |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15msec |
| TECHNOLOGY | |
| DESIGN | Micro Controller Based Design With IPS Technology |
| BATTERY CHARGING CURRENT | 10% of the Rated Battery Current in AH |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| BROWNS ON MAINS VOLTAGE | 100V +40V |
| EFFICIENCY (BATTERY MODE) | >80% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 10.5V ~ 14.2V |
| CHARGING CURRENT (Standard) | 10 Amps +1 Amps |
| CHARGING CURRENT (High) | 14 Amps +1 Amps |
