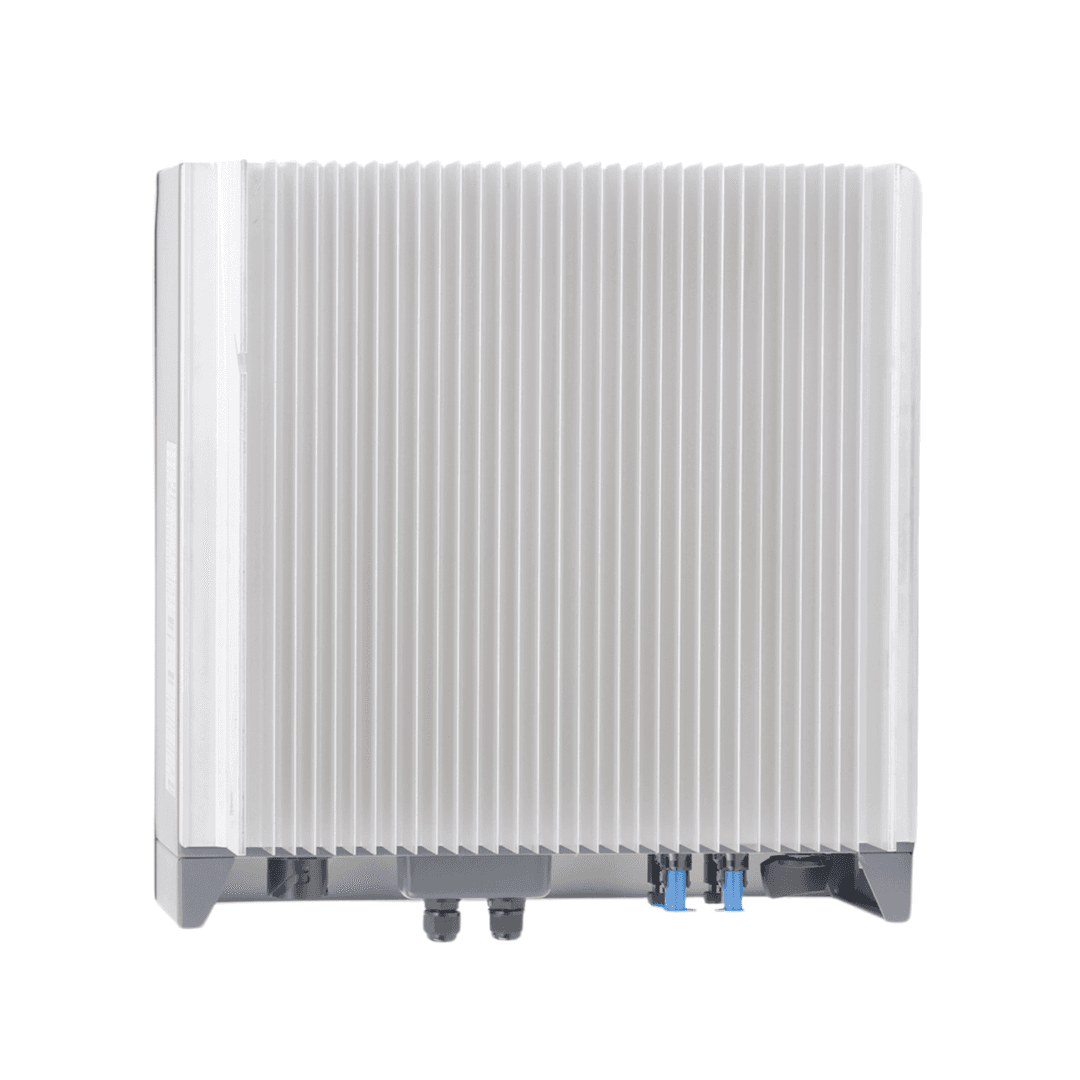

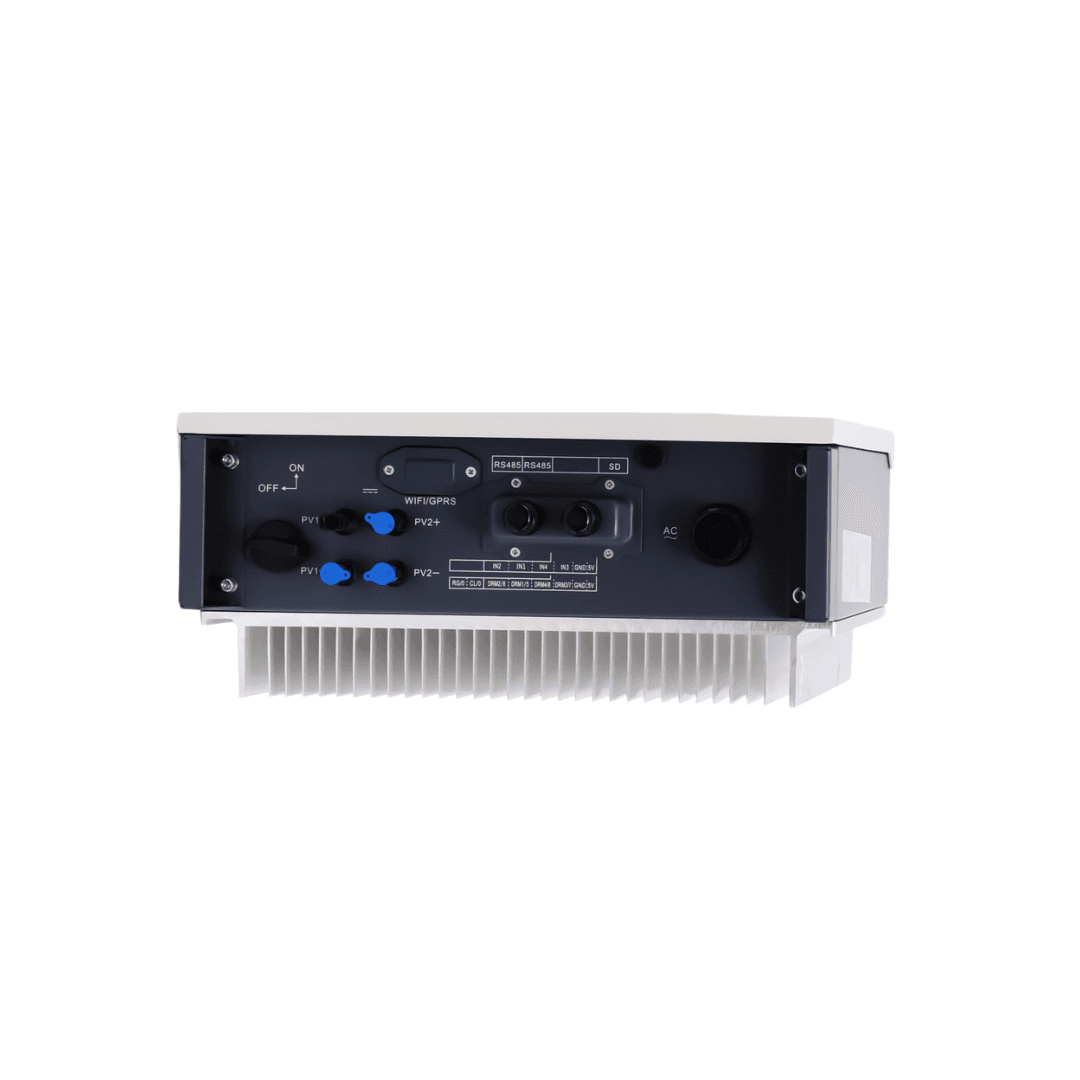

MICROTEK GTI 40KW 3-PH- M32
- Weight50 KG
- Output VoltageSame as Input
- Dimensions (L*W*H)767x564x290.5 mm
SALIENT FEATURES:
- LCD+LED Display, interface Selection.
- Wi-Fi/RS485 for more flexible configuration.
- System Monitoring, Low Maintenance Cost.
- Max 07.2% Efficiency.
- Real Time Precise MPPT Algorithm for Best Performance.
- Wide Input voltage Operating Range.
- Plug & Play Easy Installation & Maintenance.
- IP65 for Free Site Selection.
- Intelligent Grid Management.
- Reactive Power Capability & Self power Reducer when over Frequency.
- Zero Export to grid kit (Optional).
Microtek Grid tied inverters, or GTI, are not a special type of DC to AC power inverter that is widely used in renewable energy systems. They are often used to power the grid that can be sold to an electrical company. For example, if within a month the Microtek Grid tied inverters system feeds 500 kilowatt hours on the utility grid, and of these 100 hours spent, they will receive compensation for an additional 400 hours. Policies regarding this 'complete rating' program vary depending on your location and the authorities in it.
There are many different types of grids tied to the market today but Microtek Grid binding inverters form new and advanced technologies. Microtek Grid variants with high-frequency Inverter use a computer process that contains several different steps to convert power into high frequency AC, return to DC, and then AC again to the required output power.
BENEFITS OF GRID-TIED SOLAR INVERTER
1. Significant reduction in electricity bills
Since there are net meters, the consumer should only pay for the remaining electricity he uses, to ensure that the monthly debt is significantly reduced. Many of our customers are able to reduce their monthly bills by 90%.
2. Easy maintenance
The removal of batteries from the grid system makes maintenance much easier. It also eliminates battery storage costs.
3. Sync with other energy sources
These systems can also sync with a diesel generator on site. This is important in the event of a power grid not being available. (You should add a link here to link to another blog or technical article to learn more about this)
4. Better ROI
The cost of the On-grid solar system is lower than other types of solar systems because there are no batteries. It also produces a much higher energy value compared to other types of solar systems. Minor maintenance and reduction of monthly energy bills ensures that the customer receives a ROI of 25 - 30%. This means that the customer earns Rs.25,000 for every 1,00,000 investors in the sun.
With these advantages, the grid system is best suited for the customer with a stable grid capacity and low power cuts. Outside homes, even educational institutions, industrial, commercial units include an on-grid system as the system can adapt to diesel generators to provide uninterrupted power.
Microtek Grid tied inverters, or GTI, are not a special type of DC to AC power inverter that is widely used in renewable energy systems. They are often used to power the grid that can be sold to an electrical company. For example, if within a month the Microtek Grid tied inverters system feeds 500 kilowatt hours on the utility grid, and of these 100 hours spent, they will receive compensation for an additional 400 hours. Policies regarding this 'complete rating' program vary depending on your location and the authorities in it.
There are many different types of grids tied to the market today but Microtek Grid binding inverters form new and advanced technologies. Microtek Grid variants with high-frequency Inverter use a computer process that contains several different steps to convert power into high frequency AC, return to DC, and then AC again to the required output power.
BENEFITS OF GRID-TIED SOLAR INVERTER
1. Significant reduction in electricity bills
Since there are net meters, the consumer should only pay for the remaining electricity he uses, to ensure that the monthly debt is significantly reduced. Many of our customers are able to reduce their monthly bills by 90%.
2. Easy maintenance
The removal of batteries from the grid system makes maintenance much easier. It also eliminates battery storage costs.
3. Sync with other energy sources
These systems can also sync with a diesel generator on site. This is important in the event of a power grid not being available. (You should add a link here to link to another blog or technical article to learn more about this)
4. Better ROI
The cost of the On-grid solar system is lower than other types of solar systems because there are no batteries. It also produces a much higher energy value compared to other types of solar systems. Minor maintenance and reduction of monthly energy bills ensures that the customer receives a ROI of 25 - 30%. This means that the customer earns Rs.25,000 for every 1,00,000 investors in the sun.
With these advantages, the grid system is best suited for the customer with a stable grid capacity and low power cuts. Outside homes, even educational institutions, industrial, commercial units include an on-grid system as the system can adapt to diesel generators to provide uninterrupted power.
- LCD+LED Display, interface Selection.
- Wi-Fi/RS485 for more flexible configuration.
- System Monitoring, Low Maintenance Cost.
- Max 07.2% Efficiency.
- Real Time Precise MPPT Algorithm for Best Performance.
- Wide Input voltage Operating Range.
- Plug & Play Easy Installation & Maintenance.
- IP65 for Free Site Selection.
- Intelligent Grid Management.
- Reactive Power Capability & Self power Reducer when over Frequency.
- Zero Export to grid kit (Optional).
INPUT (DC) | |
MODEL | GTI 40KW-M32 |
Max. Input Power | 44000W |
No. Of Independent MPPT | 2 MPPT |
No. of DC Input | 1 For Each MPPT |
Max. Input Voltage | 1000V |
Start-Up I/P / Rated I/P Voltage | 350V/ 700V |
MPPT Voltage Range | 250V-960V |
Full Power MPPT Voltage Range | 570V~800V |
Max. Input Current per MPPT | 35A |
Max. I/P Short Ckt. Current | 14A Each MPPT |
OUTPUT (AC) | |
Rated Power / Max. AC Power | 40000W/40000VA |
Max O/P Current | 48A |
Nominal Grid Voltage | 3/N/PE, 3/PE,277/480 VAC & 422V~528V(Ph-Ph) |
Grid Voltage Range | 244~304V (Ph-N)(According to Local Standard) |
Nominal Frequency (Hz) | 50Hz/60Hz |
Grid Frequency Range (Hz) | 47Hz~53Hz / 57~63Hz (According to Local Standard) |
Active Power Adjustable Range | 0-100% |
THDi / Power Factor | <3% / 1 (Adjustable+0.8) / three Phase |
Power Limit Export | Zero Export with Anti-Reverse Power Controller (Optional) |
EFFICIENCY | |
Max. Efficiency (DC/AC) | 98.70% |
European Weighted Efficiency | 98.50% |
Self Consumption at Night | <1W |
Feed in Start Power | 45W |
MPPT Efficiency | >99.9% |
SAFETY PROTECTION | |
DC REVERCE POLARITY PROTECTION, DC SWITCH, PROTECTION CLASS,OVERVOLTAGE CATEGORY: (I/III), INPUT/OUTPUT SPD(II):OPTIONAL, ANTI ISLANDING, RCMU, GROUND FAULT MONITORING, MOV:TYPE III STANDARD | |
Certifications | IRC 62116, IEC 61727, IEC 61683, IEC 60068(1.2.14.30), IEC 62109-1/2, CE, CGC, AS4777, AS3100, VDE4107,C10-C11, G83/59 (More Certifications available as per requirement) |
Degree of Protection | IP65 |
COMMUNICATION |
|
Power Management Unit | According to the certification and Request |
Standard Communication Mode | RS485, Wi-Fi (Available), GPRS (Optional), SD Card (Available), Multi Funtion Relay |
Operating Data Storage | 25 Years |
AMBIENCE PARAMETERS |
|
Operating Temperature | -25°C~+60°C |
Acoustic Noise | <30dB |
Allowable Rel. Humidity Range | 0 to Max 100% No-Condensing |
Max. Operating Altitude | 3000M |
Display | LCD Display |
Dimensions(LxWxH) in MM | 767x564x290.5 mm |
Weight | 50 KG |
