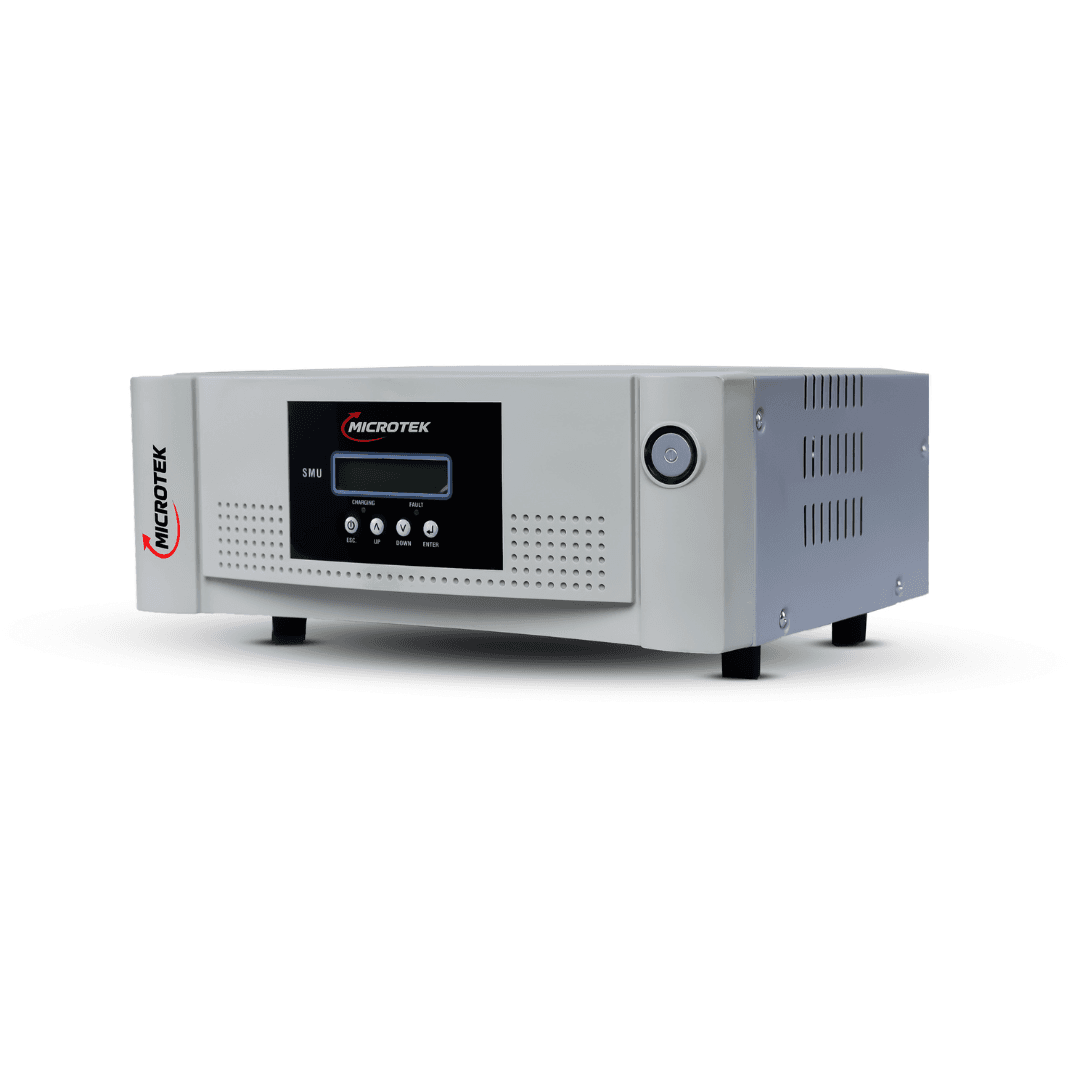

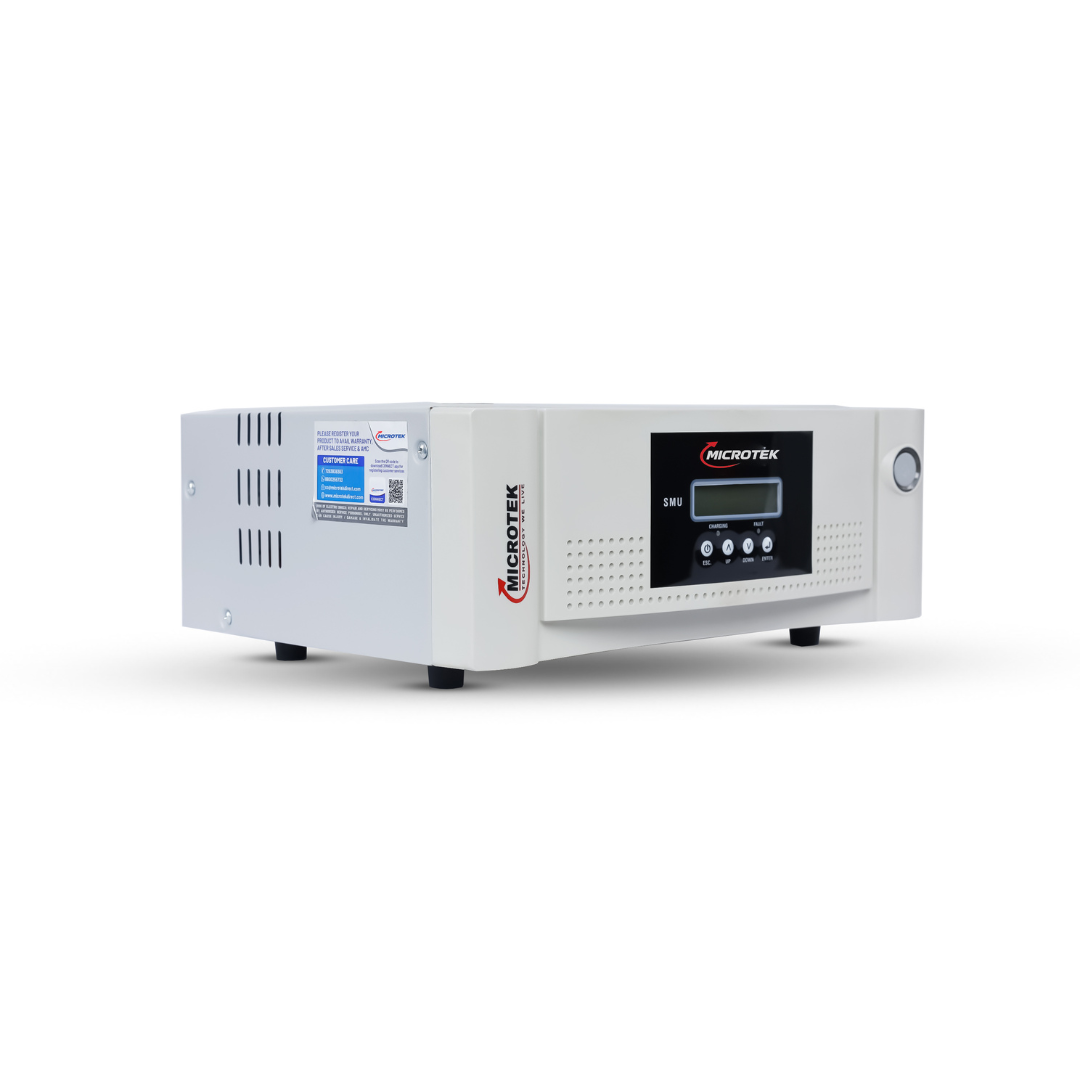

Hi-End SMU 18050 with LCD Display
- Weight4.3kg
- Output Voltage140V~280V
- Dimensions (L*W*H)33.3x29.1x14.78
SALIENT FEATURES:
- Highly Efficient PWM Charging, ensures
- More Battery Life and Improved Solar System Performance.
- Automatically recognizes Day & Night.
- Mosfet Switching System.
- Micro Controller based design.
MICROTEK Micro-Controlled based High Efficiency,PWM SOLAR MANAGEMENT UNIT (SMU) is best suited for Low-Power Solar Applications.
Microtek introduces a new and unique device 'Solar Management Unit ". SMU (solar management unit) is a special and unique Indian device that converts your simple Inverter into a Solar Inverter. -The same SMU works on both 12V & 24V inverters.
The charging process is designed for long battery life and improved system performance. Comprehensive self-examination and extensive electronic protection can prevent damage to the wrong cable or system errors.
When the sunlight is full the solar charge controller charges the solar battery with the first value of solar energy, when the battery is fully charged, it runs the load from the sun and automatically starts to move the load to the power back in the evening. The solar management unit gives priority to the solar panel.
In this SMU, you get a built-in PWM Solar Charge controller, which maintains the efficiency of solar panels and solar battery life for a long time.
The best part of Microtek SMU (solar management unit) is that it operates on a single inverter with one or two batteries. It has great features in automatic battery selection. Available in 12V or 24V with 1 year warranty.
MICROTEK Micro-Controlled based High Efficiency,PWM SOLAR MANAGEMENT UNIT (SMU) is best suited for Low-Power Solar Applications.
Microtek introduces a new and unique device 'Solar Management Unit ". SMU (solar management unit) is a special and unique Indian device that converts your simple Inverter into a Solar Inverter. -The same SMU works on both 12V & 24V inverters.
The charging process is designed for long battery life and improved system performance. Comprehensive self-examination and extensive electronic protection can prevent damage to the wrong cable or system errors.
When the sunlight is full the solar charge controller charges the solar battery with the first value of solar energy, when the battery is fully charged, it runs the load from the sun and automatically starts to move the load to the power back in the evening. The solar management unit gives priority to the solar panel.
In this SMU, you get a built-in PWM Solar Charge controller, which maintains the efficiency of solar panels and solar battery life for a long time.
The best part of Microtek SMU (solar management unit) is that it operates on a single inverter with one or two batteries. It has great features in automatic battery selection. Available in 12V or 24V with 1 year warranty.
- Highly Efficient PWM Charging,ensures
- More Battery Life and Improved Solar System Performance.
- Automatically recognizes Day & Night.
- Mosfet Switching System.
- Micro Controller based design.
- Priority Load Sharing through Solar during daytime,thereby saving your mains electricity.
- Functions independently as a Solar Charge Controller when the front Switch is in Off Position.
- Compatible with all type of Batteries:SMF/Flat Plate/Tubular.

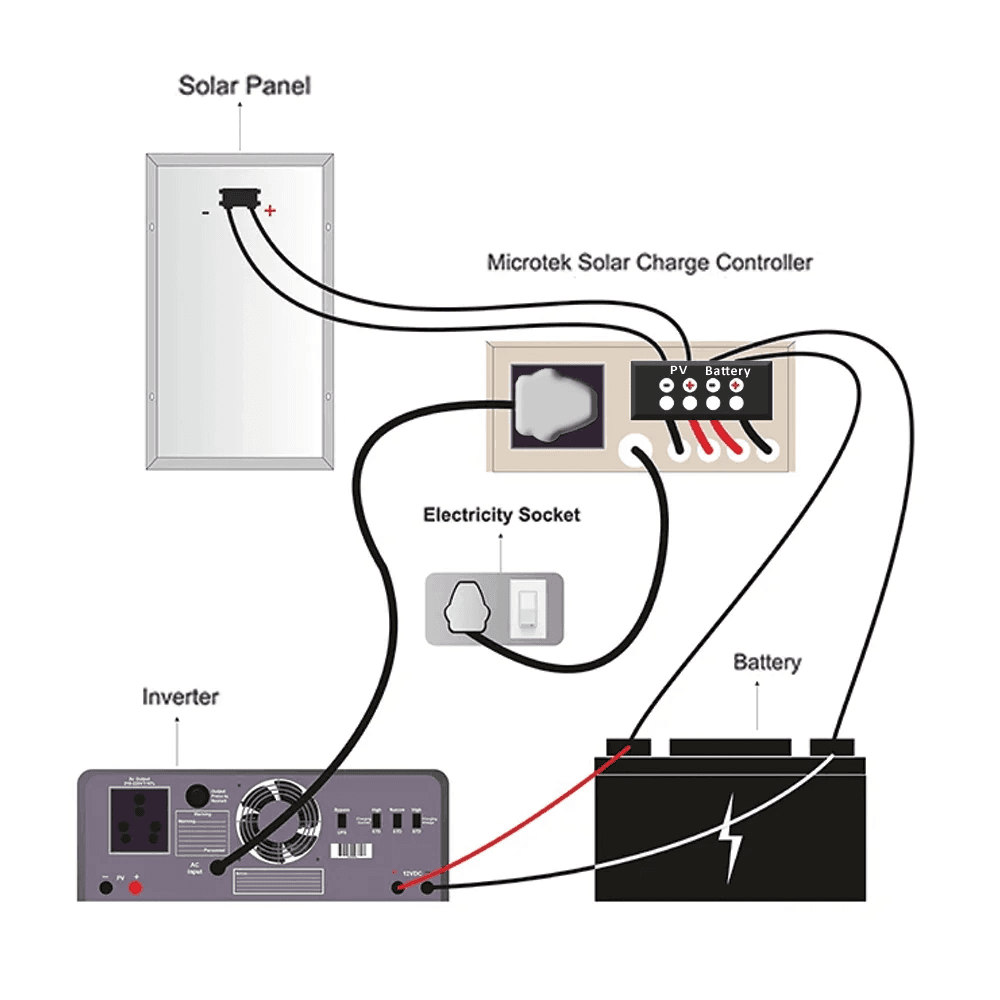

- This Solar Management Unit Solar(SMU) can convert your simple inverter into a solar inverter.
- It Ensures Priority Usage of Solar Power Over Grid Power to Reduce Grid Consumption.
- It has an Advanced Charging Process that Optimizes the Battery's Life and Improves System Performance.
- Its Inclusive Electronic Protection Prevents Damages Against Incorrect Wiring or System Faults.
- This SMU is a Product Which Provides People with High-Quality Solar Solutions.
| MODEL NO. | HI-END SMU 18050 |
|---|---|
| System Rating | 180V - 50A |
| Recommended UPS/INV Range | Up to 10KVA@180V |
| Rating Mains Input Current | 60.2A |
| Maximum Charging Current | 50A (Can Be Set Via LCD) |
| Nominal Battery Voltage | 180V |
| Number Of Batteries (in Series) | 15 |
| Batteries High Cut Off | 243.75V |
| Batteries High Cut Off Come Back | 217V |
| Batteries Low Alarm | 150V |
| Batteries Low Alarm Recovery | 165V |
| Priority Selection | SMB / SBM | Solar Only | Mains Only |
| Batteries Type Selection | TUB/FLA/SMF/LOCAL |
| Peak Charging Efficiency | >99% |
| Panel Open Circuits Voltage | 255-337.5V |
| Mains Input Phase | 1 PH (L/N) + PE, 3-Wires |
| Mains Input Voltage Range |
Default: 80V~300V Standard: 140V~280V Narrow: 180V~265V |
| Low Line / High Comeback | Low Line Loss Voltage +10V High Line Loss Voltage -10V |
| Mains Input Frequency Range | 42~65Hz |
| Freq. Low / High Comeback | Freq. Low Loss + 1Hz Freq. High Loss - 1Hz |

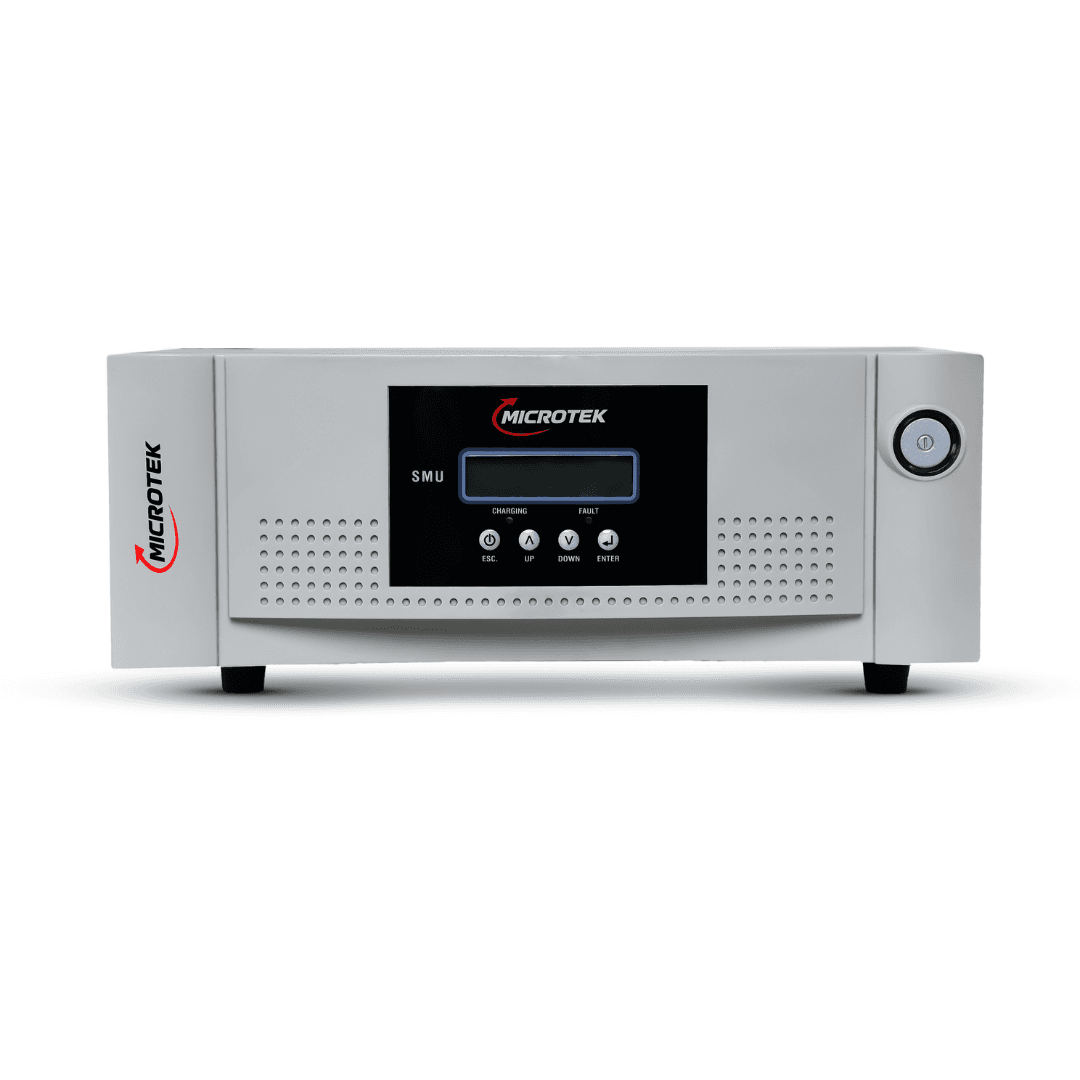

| Display | LCD +2 LEDs (Green + Red) |
| Operating / Storage Temp. Range | Operating: 0°C~50°C Storage: -25°C~60°C |
| IP Rating | IP21 |
| Humidity / Noise Level | 0~95% Non-Condensing / <45dB |
| Dimension LxWxH (mm) | 333.5 x 147.8 x 291.3 / 3.56 Kgs |
| Ventilation | Forced Air Cooling |
| Protections | Reverse Batt. , Reverse PV, Reverse Current From Batt. To PV, Over PV Current, Batt. High Voltage, Over Temp. , PV Short, AC Short Protection by Breaker, Batt. Inner Short Protection By Breaker |

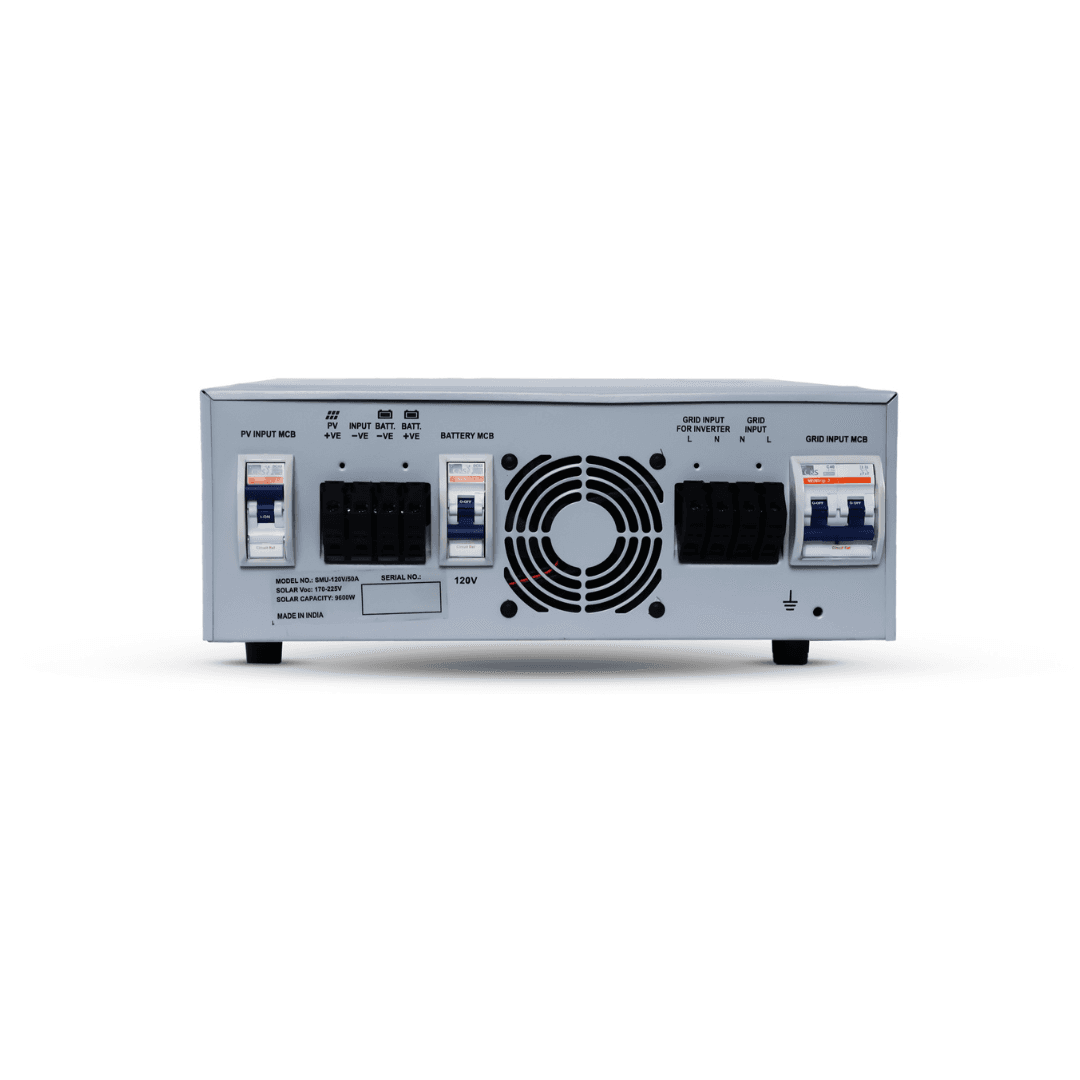

| Inbuilt Circuits Breaker | For PV, Battery & Grid |
| PV Wire Length | <100m (50M PV+ & 50M PV -) |
| Wire Gauge For Batteries & PV | 8mm2~10mm2 (when the wire length is over 10m("+"+"-"), appropriate Wire Gauge must be used for keeping the wiring loss with-in the limits in compliance with IS/IEC Standard) |
| Wire Gauge For I/P Grid & UPS/INV | 10mm2 |
