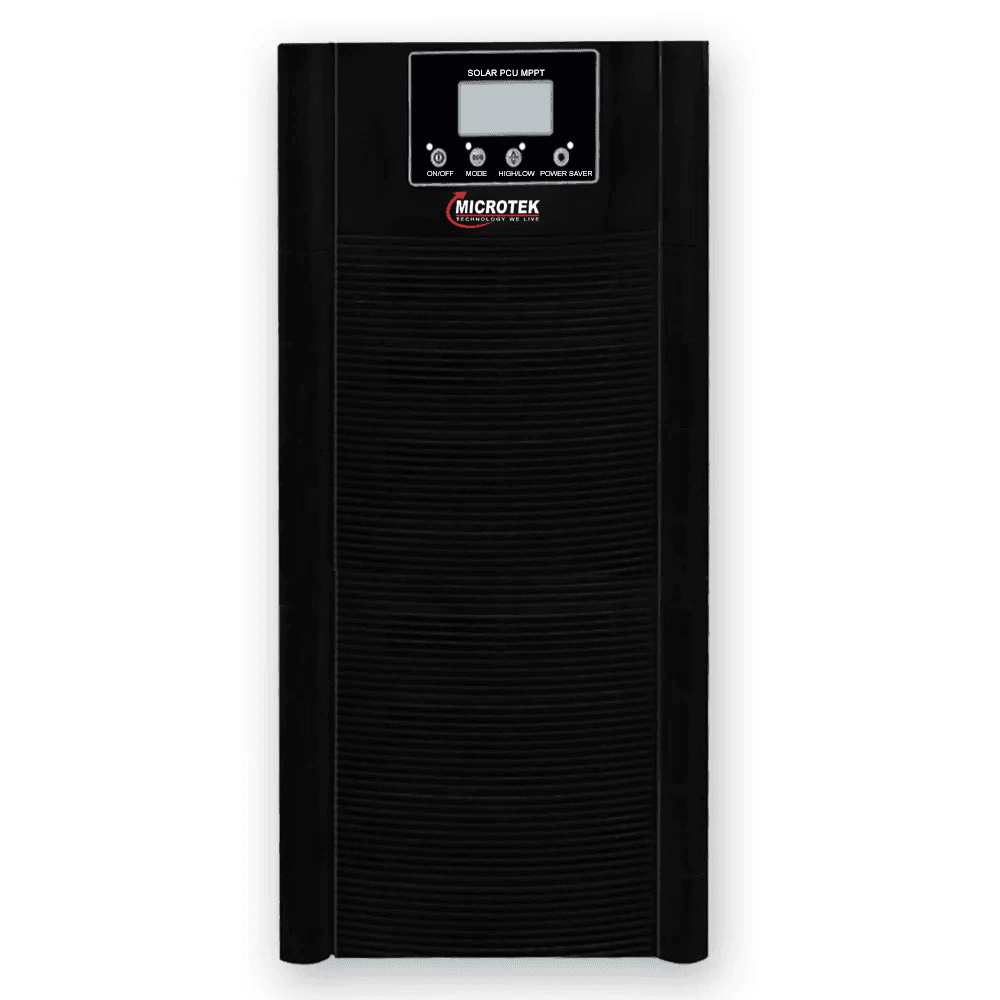

HI-END MPPT PCU 10070/120V
- Weight82.6kg
- Output VoltageSame as Input
- Dimensions (L*W*H)48.4x27.7x77.5
SALIENT FEATURES:
- High Efficiency Microtek Solar TRUE MPPT PCU are Based on DSP Technology.
- Pure DSP Sine Wave Technology.
- User Friendly SMart Multicolor LCD Display.
- State of The Art & Advanced MPPT Technology Ensure 30% More Energy Genration Form Solar PV.
- Advance Real Time Clock Technology Ensure Optimum Saving of ElectronicBill.
Microtek HI-END MPPT Based Solar PCU is designed using latest state-of-the-art Technology for Better Performance and High Reliability.The Solar Sinewave Technology used,enhances the life of the battery and minimum effort has to be put for maintenance. In a solar Hi-End MPPT Based PCU, battery charging is very important during the day. Solar PCU controls the core and selects the charging source accordingly. Comes with a user that selects the energy-saving option to allow the user to choose the priority and save the bill.
Microtek HI-END MPPT Based Solar PCU is designed using latest state-of-the-art Technology for Better Performance and High Reliability.The Solar Sinewave Technology used,enhances the life of the battery and minimum effort has to be put for maintenance. In a solar Hi-End MPPT Based PCU, battery charging is very important during the day. Solar PCU controls the core and selects the charging source accordingly. Comes with a user that selects the energy-saving option to allow the user to choose the priority and save the bill.
- High Efficiency Microtek Solar TRUE MPPT PCU are Based on DSP Technology.
- Pure DSP Sine Wave Technology.
- User Friendly SMart Multicolor LCD Display.
- State of The Art & Advanced MPPT Technology Ensure 30% More Energy Genration Form Solar PV.
- Advance Real Time Clock Technology Ensure Optimum Saving of ElectronicBill.
- Smart LCD Displays Total Solar Energy Genration (in KWH).
- Provision FOr Setting Critical Parameters of Solar Thru SMart Front Panel.
- Smart Logic Built in Software to Maintain Battery Gravity & Enhance Battery Life.
- Battery Types Support : Tubular, SMF & Flat Plate.
- Remote Monitoring Thru WI-FI/LAN/GPRS (Optional Feature).
| MODEL | PCU MPPT 10070 / 120V |
|---|---|
| PV Controller Topology | MPPT |
| Rated Capacity | 10KVA |
| Battery Nominal Voltage | 120V |
| Grid Input Voltage Range | NORMAL MODE: 100V~280V |
| UPS MODE: 180V~260V | |
| Maximum Solar Input Power(W) | 9250W |
| Maximum Solar Input Voltage (VOC) | 350Voc |
| MPPT Oeprating Voltage Range (VMP) | 180V~280V |
| No. Of Output Phase | 1Phase |
| Inverter Output Voltage at Nominal DC | 230V+3% |
| Output Frequency | 50Hz+1% |
| THD | <3%(at Linear Load) |
| Maximum PV Input Current (A) | 34 + 1A ( 17A/ Channal, Total Channel-2 ) |
| Peak Charge Controller Efficiency | 98% |
| Max. Battery Charging Current From PV (A) | 40 Amps:(Defualt) Settable From 5 to 50 Amps For Battery |
| Max. Battery Charging Current From Grid (A) | 16 Amp Default(Settable From 5Amp to 16Amp) |
| Continious Output Power (W) | 8 000W |
| Transfer Time | NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec |
| UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec | |
| Protections | Battery Over-Voltage, Overcharge, PV Reverse Polarity, PV Reverse Current Flow, PV Surge, Overload, Inverter Over Temprature & Load Short Circuit Protections |
| Intelligent Sharing of PV Current & Grid | State of the Art Inbuilt Technology ensures four Leval of Solar Saving Setting SL1, SL2, SL3 & SL4 Selectable From Front Panel Meeting Requirement of all Type of Users. |
| Clearance on All Side for Installation | Recommended 1 Feet |
| DC Input Volt. High Cut Protection/Recover | Available |
| Most Advanced Real Time Clock Technology | RTC ensures Optimum Saving Of Solar Energy |
| Operating Temperature / Realative Humidity | 0~45°C / 5%-95% Non Condensable |
| Weight (Kgs.) | Net: 78.670 / Gross: 83.500 KG |
| Dimension (LxWxH) in MM | 484x277x775 |
